OCPP Pedestal 2x7-22KW Dual AC Commercial EV Charger

EXV, also referred to as Aecoauto, operates as a China-based supplier, providing a variety of cars, with the renowned OCPP Pedestal 2x7-22KW Dual AC Commercial EV Charger among them. OCPP Pedestal 2x7-22KW Dual AC Commercial EV Charger is a powerful and well-designed dual-gun AC charging post for commercial use. With high power output and multiple safety protection functions, it provides a convenient and efficient solution for charging electric vehicles.

Send Inquiry

Product Description

As EXV, known as Aecoauto, we are China-based suppliers offering a variety of vehicles, including the renowned OCPP Pedestal 2x7-22KW Dual AC Commercial EV Charger.

OCPP 2.0.1 OCPP 1.6J ISO15118 PnC

Pedestal 2x7kW 2x22kW Dual AC

Commercial EV Charger

The Pedestal AC dual charger are designed for commercial

operation.

·Input Rating: 1-phase 230V±20%; 3-phase 400V±20%

·Output Rating: 1-phase 2 x 7kW 32A;3-phase 2x 22kW 32A

·Internal RCD:2 x Type-B RCCB

·Display:7"LCD

·Meter: 2 x MID meter

·Network Interface: Ethernet/ WiFi/ 4G smart internet connection

· OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support

·ISO15118 Plug&Charge: Upgradable

·Ingress Protection:IP55

· Shipping Dimensions: 1530 x 450 x 320 mm

·Charging Interface: SAE J1772&Type-2 cable/Type-2 socket/

T2S Socket with Shutter

·Mounting Type:Floor

Give everything you need

IOCAP06C is a perfect charger for commercial charging to be used in fleets, workplaces, public, etc. Each charging connector can output maximum 22kW power at the same time,improving the efficiency of charging stations. OCPP 1.6J & OCPP 2.0.1 are fully compliant making it easy to be compatible with main-stream EV CSMS.

Main features:

·Compatible with all cars and power grids

·2x RCCB Type-B

· 2 x MID Meter

· 2 x SPD 40KA

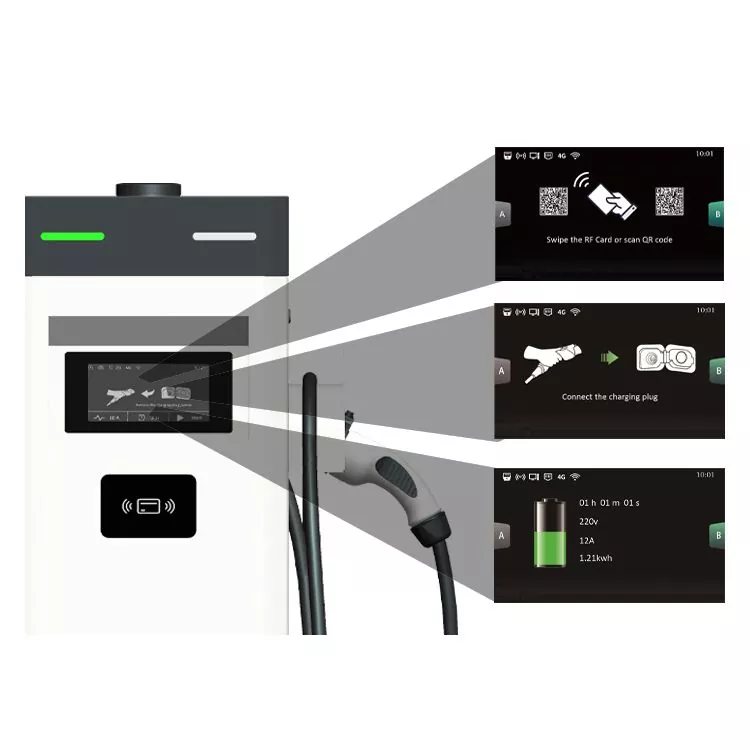

·7'LCD display for easy and user-friendly operation

·Intelligent Ethernet, Cellular, WLAN Switching

·Flexible output current/power configuration

·smart dynamic load balancing support

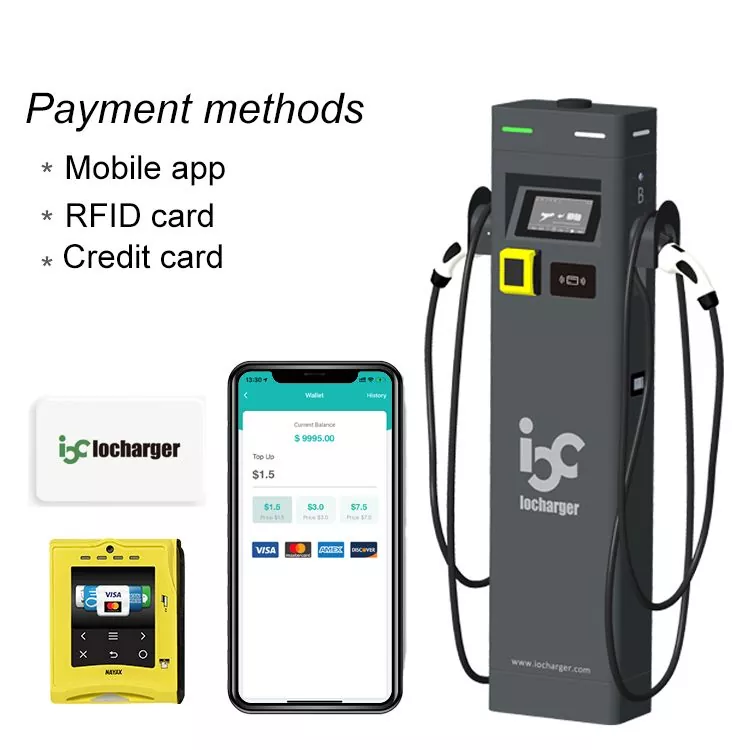

·User authentication via RFID or Mobile App

·User friendly web portal for charger configuration
