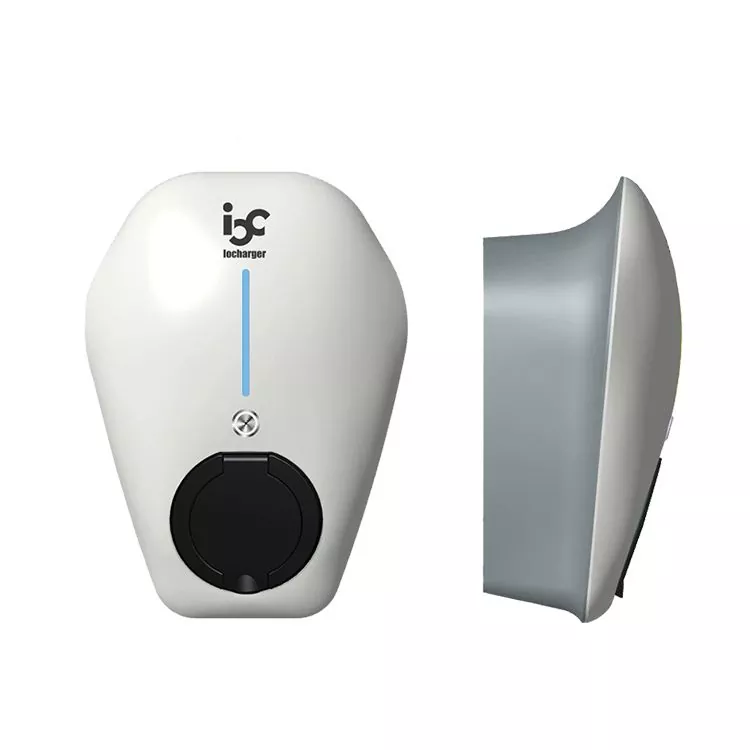

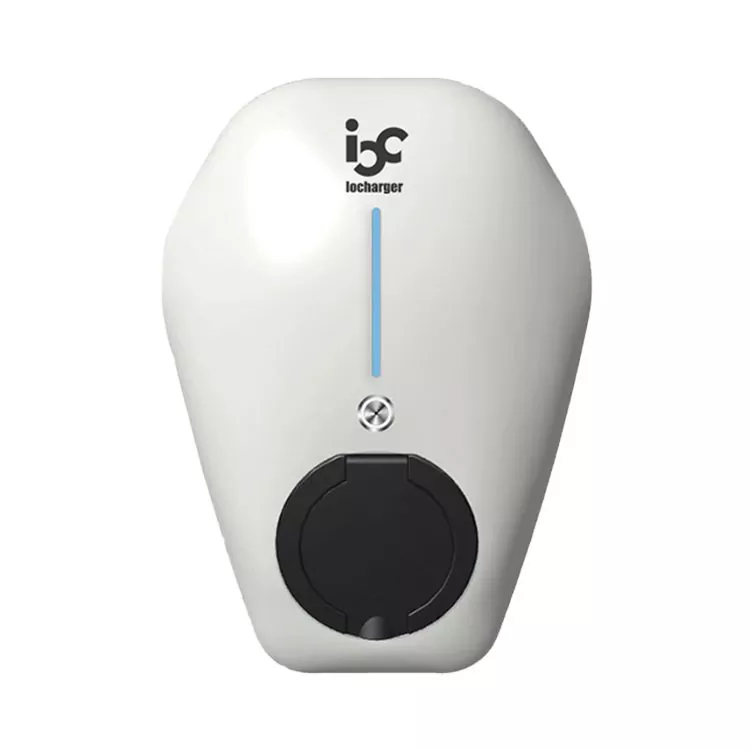

7k-11KW OCPP Mini Smart EV Charger

EXV, known as Aecoauto too, operates as a supplier in China, providing a variety of cars. Some car chargers are also available, among which is the 7k-11KW OCPP Mini Smart EV Charger. 7k-11KW OCPP Mini Smart EV Charger is ideal for domestic and commercial use due to its intelligence, safety, durability, and convenience.

Send Inquiry

Product Description

As EXV, also referred to as Aecoauto, we serve as suppliers in China, offering a variety of vehicles. Some car chargers are also available, including the 7k-11KW OCPP Mini Smart EV Charger.

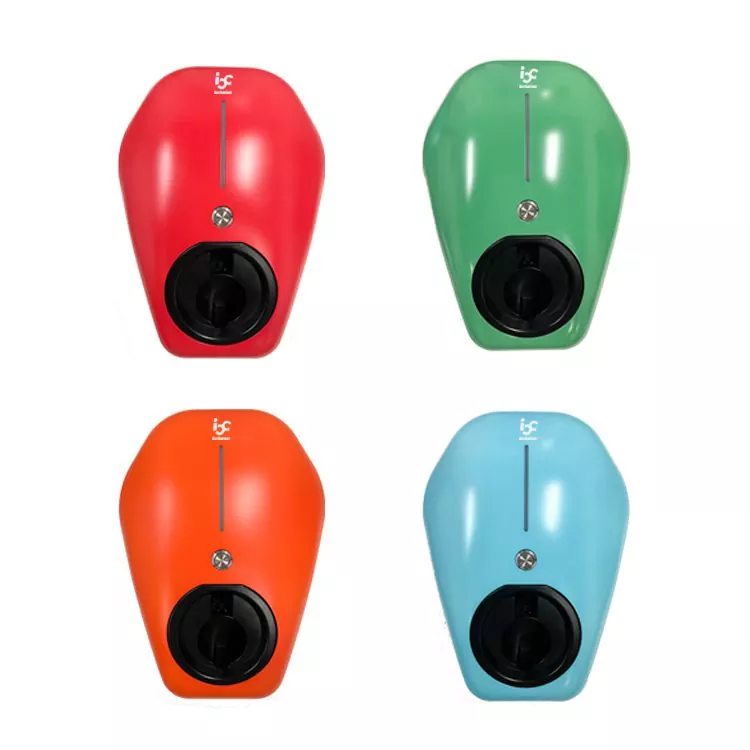

Multiple Colors 7KW 11kW

OCPP 1.6J & 2.0.1 WiFi &

Bluetooth Mini Smart EV

Charger

The smallest and most stylish EV charger for home

charging, dynamic power distribution to make sure of a

safe and efective network for EV chargers, solar, grid

system and energy storage systems.

·Input Rating: 1-phase 230V±20%;3-phase 400V±20%

·Output Rating: 1-phase 7kW 32A;3-phase 11kW 16A

·Internal RCD: AC 30mA & DC 6mA IEC62955 &

IEC61008 certified

·Network Interface: Ethernet/WiFi/ Bluetooth smart

internet connection

· OCPP: Full OCPP 1.6J/ OCPP 2.0.1 support

·ISO15118 Plug&Charge: Upgradable

·Ingress Protection:IP55

·Shipping Dimensions: 398 x 285 x 176 mm; 398x 285 x

226mm

Charging Interface:SAE J1772 & Type-2 cable/Type-2

socket

·Mounting Type: Wall or Floor( pedestal supplied

separately)

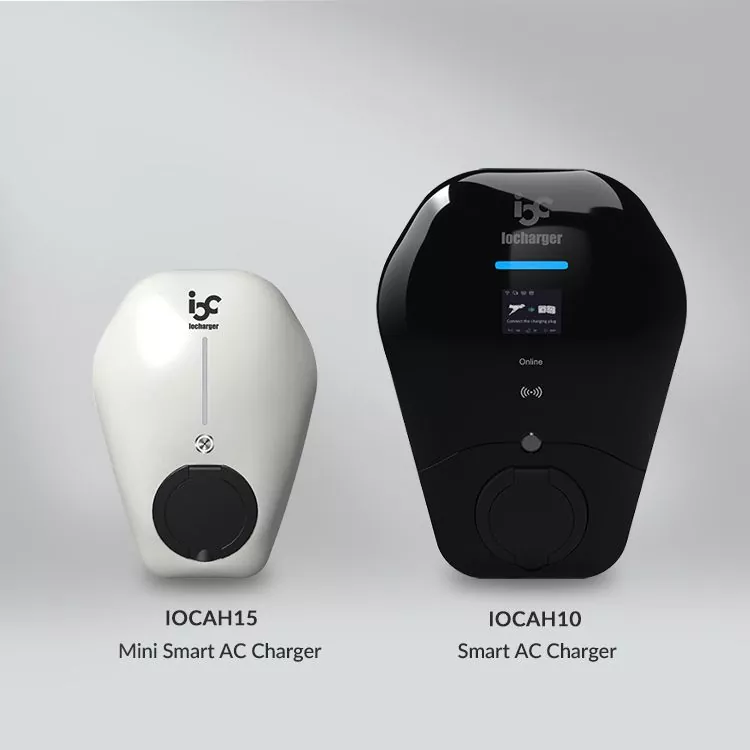

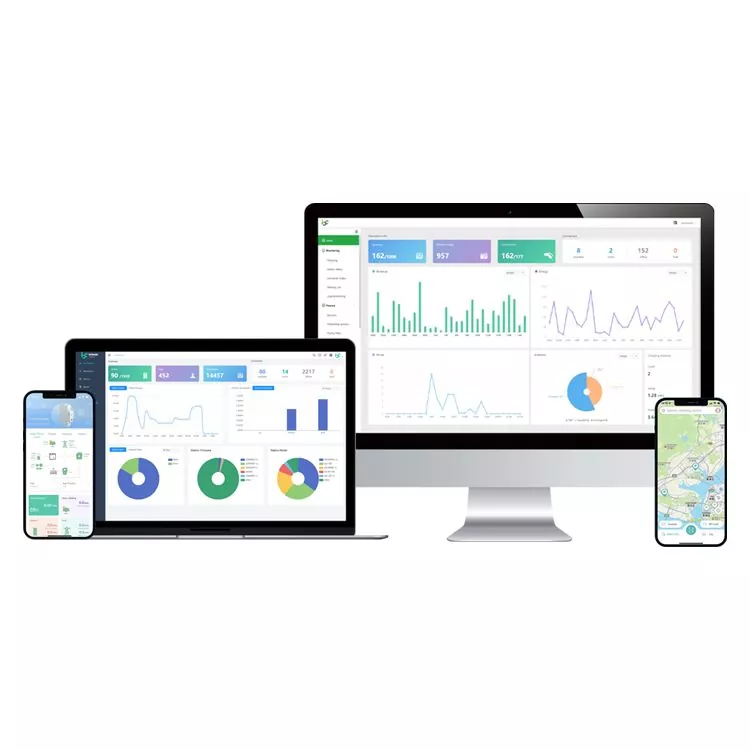

IOCAH15 is a perfect choice for home charging with a compact design yet powerful and smart. Multiple functions are available on IOC Lite App to manage charging schedules, load balancing and energy sources from solar & battery.

Main features:

· Compatible with all EVs and power grids

·Single phase 32A 7kW & Three phase 16A 11kW

available

·Streamlined design, simple and elegant appearance

·Ethernet, Wi-Fi, Bluetooth connection

·Flexible output current/power configuration

·Customizable breathing light according to

preferences

· Smart dynamic load balancing support

·User authentication via Mobile App

·Multifunctional charger commissioning web portal

·Remote control and monitoring

·AC 30mA & DC 6mA current leakage protection

IEC62955 & IEC61008 certified

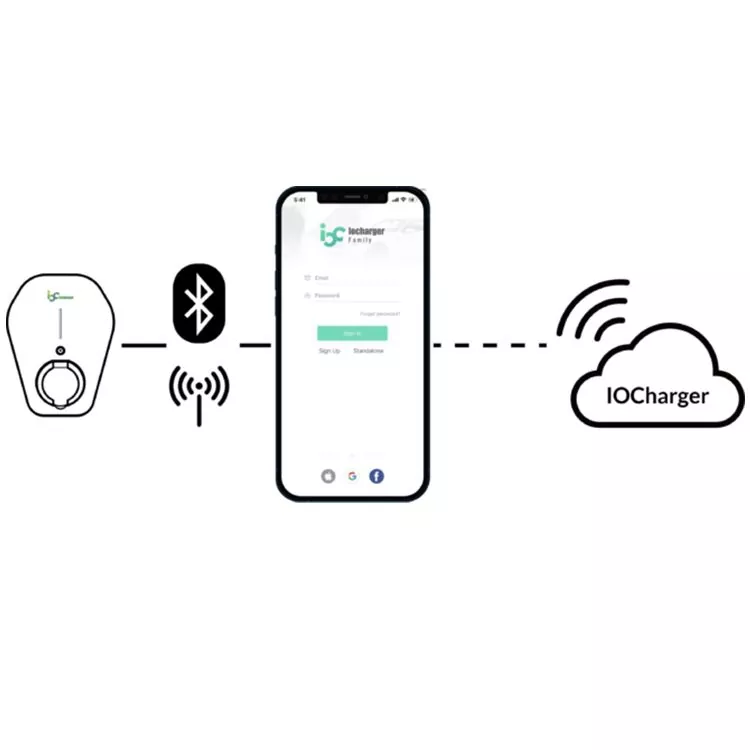

Bluetooth Technology

IOCAH15 has integrated our latest Bluetooth technology

to maximize the user experience in challenging

environments like underground parking, in apartment

buildings and offices, our mobile App can work

seamlessly with or without network connection.

Users can start, stop and manage the charger via an

Internet/Bluetooth connection and the data will be

synchronized between the phone and back-end once

the phone has coverage.

Dynamic Load Balancing

The CT clamp can be connected to the IOCAH15 mini

smart AC charger directly for current monitoring of

other home appliances, without extra device.The

charging current is automatically adjusted according

to real-time current values. It can prevent our home

from overloading with installation of single or multiple

chargers,either online or offline.

OCPP 1.6J & 2.0.1

As a member of OCA(OCPP) & OCPI, our EV chargers are

always integrated with the latest OCPP technology

including OCPP 1.6J and OCPP 2.0.1.With more than 8

years' OCPP experience, our chargers are certified by

major OCPP platforms and CPOs.

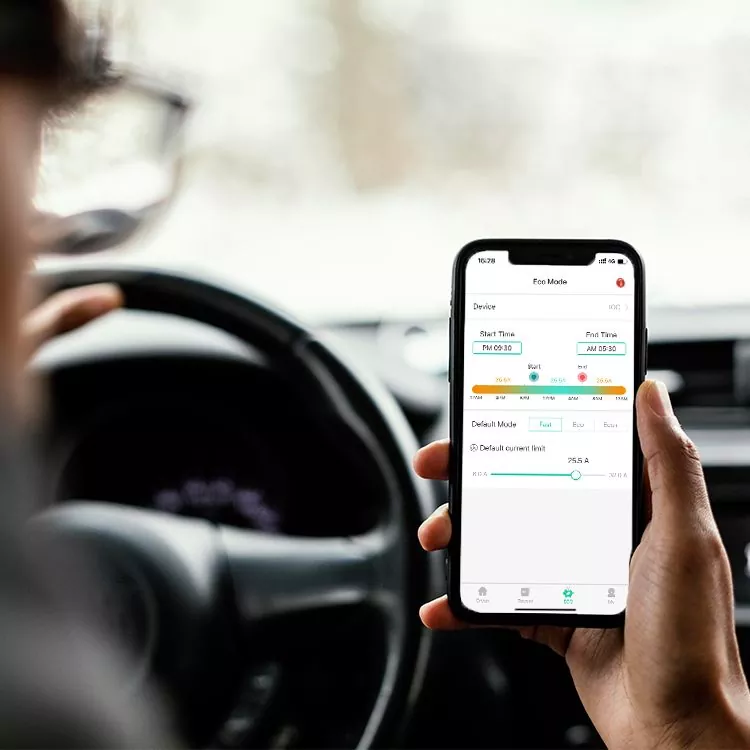

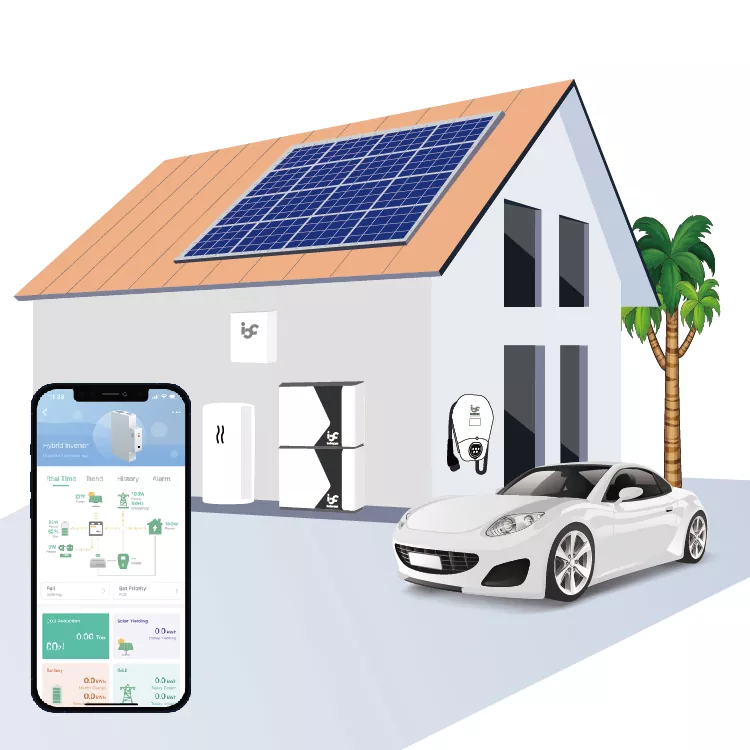

Optimize Energy Usage

Fully compatible with solar installation and battery

storage system.Connect IOCAHI5 to IOC Lite Mobile App

to experience Fast, ECO, ECO+ modes to minimize the

charging cost, monitor and utilize different energy

sources from grid,solar and home batteries.
