OCPP 240-420KW Ultra Fast Charging Station

EXV, also identified as Aecoauto, functions as a China-based supplier, offering a variety of cars. Some car chargers are also available, including the OCPP 240-420KW Ultra Fast Charging Station. OCPP 240-420KW Ultra Fast Charging Station is a DC wall-mounted charging post that combines plug-and-charge technology with the OCPP protocol. It is designed to meet the needs of electric vehicle users for convenient and efficient charging, providing an ideal charging solution for homes, neighborhoods, car parks, and other places.

Send Inquiry

Product Description

We are EXV, also recognized as Aecoauto, and we supply a variety of cars in China. Some car chargers are also available, including the OCPP 240-420KW Ultra Fast Charging Station.

OCPP 2.0.1 ISO15118 240KW 300KW

360KW 420kW Ultra fast charging

station

IOCLY2 is designed for quick and convenient charging to meet the

fast charging demands, easy to use for everyone.

Input Rating:3-phase 400V±15% AC

Max DC output power:240kW/300kW/360kW/420kW

Output DC voltage range:150-1000V DC

Display:8" TFT Touch Screen LCD

Network Interface: Ethernet/ 4G smart internet connection

OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support

ISO15118 Plug&Charge:Upgradable

Ingress Protection:IP55

Charging Interface:Dual CCS2

Mounting Type:Floor

Dimension:2200x850x1100mm

As rapid growth of EVs on the road nowadays, fast charging demand surges thereupon.IOCLY2 Ultra fast charging station increase charging speeds dramatically.

Main features:

·Charging up to 420kW

·Simultaneous charge up to 2 EVs

·Latest OCPP 2.0.1 compliant

·ISO15118 Plug&Charge

·Dynamic load distribution

·Adjustable operating current & power

·Secure User Identification

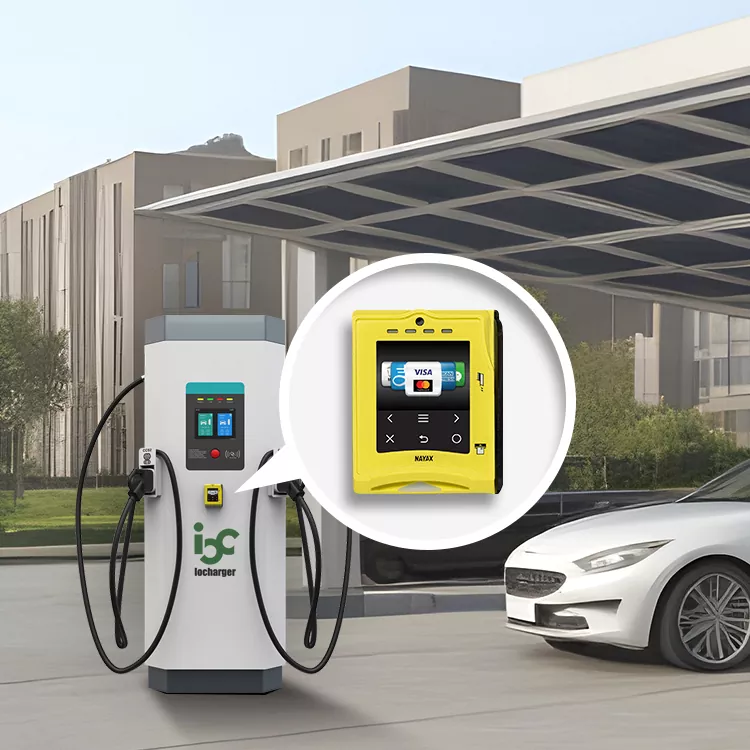

·Via RFID or Mobile App or Payment terminal
