Plug and Charge OCPP 30-60KW DC Wallbox

We are EXV, also recognized as Aecoauto, and we supply a variety of vehicles in China. Some car chargers are also available, including the renowned Plug and Charge OCPP 30-60KW DC Wallbox. With convenient plug-and-charge function, open communication protocols, fast charging power, and a design suitable for wall-mounting, Plug and Charge OCPP 30-60KW DC Wallbox can provide an efficient and convenient charging experience for electric vehicles.

Send Inquiry

Product Description

EXV, also identified as Aecoauto, operates as a supplier in China, providing a variety of cars. Some car chargers are also available, with the renowned Plug and Charge OCPP 30-60KW DC Wallbox as one of our offerings.

ISO15118 Plug&Charge V2G Level 3

OCPP 1.6J OCPP 2.0.1 30KW 60KW

DC Wallbox

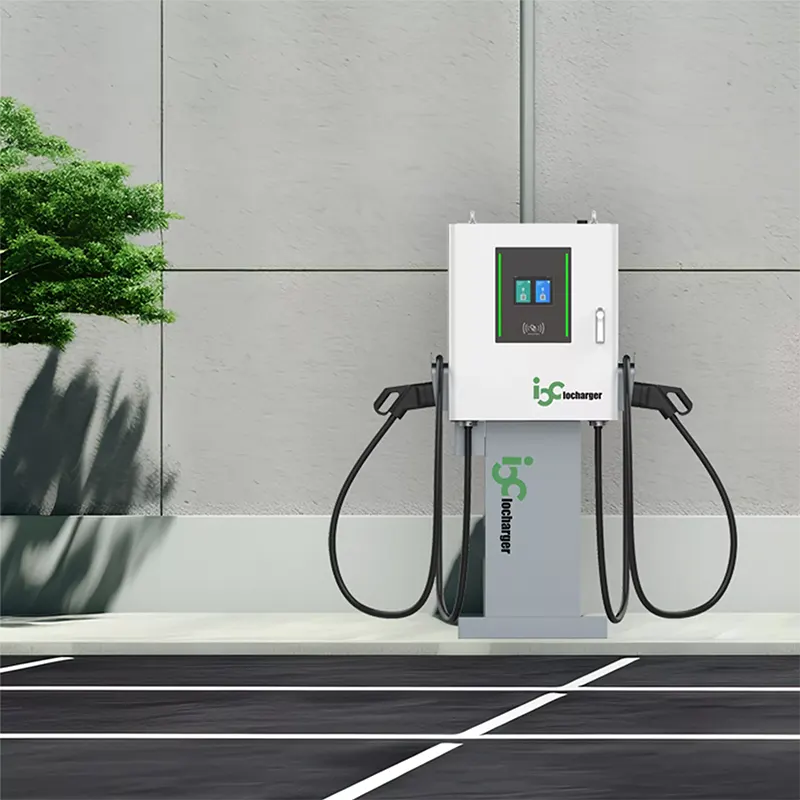

IOCHY2 is a compact DC charging station can be fixed on wall or

floor-mounted as an option,easy to use for everyone.

·Input Rating:3-phase 400V±15% AC

·Max DC output power:30kW/ 60kW

·Output DC voltage range:150V-1000V DC

·Display:8" TFT Touch Screen LCD

·Network Interface:Ethernet/WiFi/ 4G smart internet connection

·OCPP: OCPP 1.6J/ OCPP 2.0.1 full profiles support

·ISO15118 Plug&Charge: Upgradable

·Ingress Protection: IP54

·Charging Interface:1 CCS/1 CHAdeMo/2 CCS/2 CHAdeMO/1

CCS+1 CHAdeMO

·Mounting Type:Wall or Floor(pedestal supplied separately)

·Dimension:355x690x770mm

Main features:

·Charging speed upto 60kW

·CCS1/CCS 2/ChadeMO/ GB-T charging connector

·ISO 15118 Plug & Charge

·Support two charging connectors charging simultaneously

·95% power efficiency for cost-saving operation

·Embedded RFID card reader for user authentication

·8 inch LCD touch screen & user-friendly interface easy to

operate

·Wired/wireless network capability for back office connection

·Pin-Code(OTP)

·Full OCPP 1.6J & OCPP 2.0.1 commands support

Fast charging speed and high efficiency

IOCHY2 allows maximum 60kW charge power which ensure long

endurance mileage in short-time charging. Charging efficiency

over 95% and low standby consumption make cost-saving

operations possible.

Applicable to a wide variety of use cases

With its ultra-compact design, it is safe and reliable for residential,

workplace offices, public commercial assets like shopping centers,

hotels,parking structures,fleets,etc.

Easy to use

IOCHY2 enables safe authentication and secure payment through

RFID,mobile Apps. The multi-language supported 8 inch touch

screen makes the charging operation easy & understandable for

all users.

Smart charging supported

Smart charging via latest OCPP. Dynamic load management

feature makes it ready for integration with advanced smart

building energy building or when power source is limited.
